Microtomy

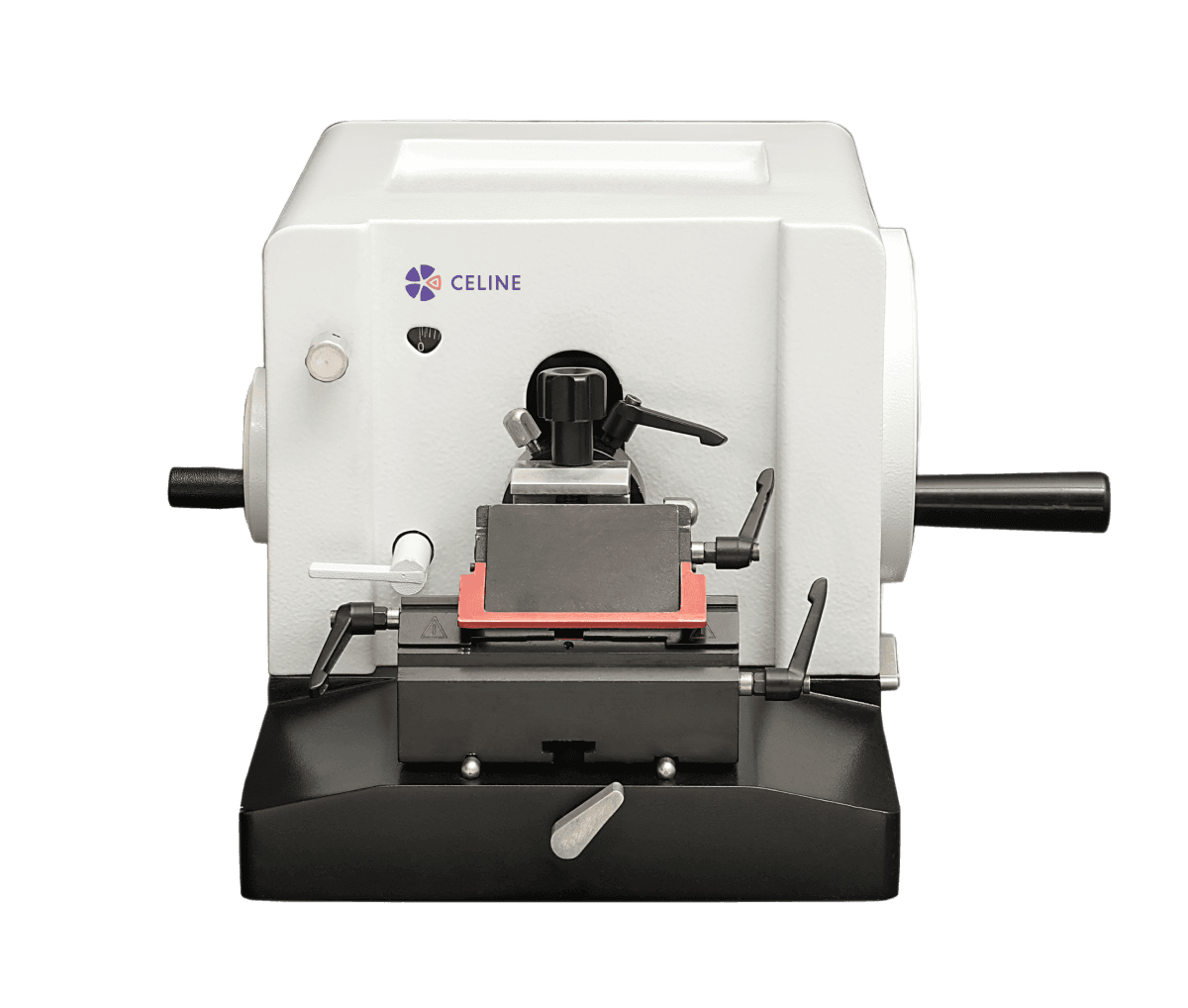

Sectra 1
Features
Manual Adjustment Wheel: Regulates forward and backward movement of the section holder.
Smooth Hand Wheel: Provides effortless sectioning and precise control.
Manual Display: Shows micron setting changes clearly.
Universal Blade Holder: Triple adjustment modes maximize flexibility.
Heavy & Rigid Base: Delivers stability and shake-proof sectioning.
Standardized Section Holder: Holds embedding rings up to 55 × 55 mm; adjustable by ±8° on X, Y, and Z axes.
Manual Adjustment Knob: Allows precise micron settings for section cutting.
Technical Specifications
Specification | Details |
|---|---|
Section Thickness Range | 0.5 – 60 µm |
Section Thickness Setting Values | 0.5–2 µm (0.5 µm steps); 2–60 µm (1 µm steps) |
Horizontal Specimen Feed | 25 mm |
Vertical Specimen Feed | 60 mm |
Specimen Orientation (XY Axis) | ±8° |
Specimen Orientation (Z Axis) | 360° rotation |
Specimen Holder Dimensions | 55 × 55 mm |
