Microtomy
Stratys
Features
Position Memory: One-touch memory restores specimen head to its last position for efficiency.
Smart Workflow: Built-in operation logs, user permissions, and scheduling functions streamline lab management.

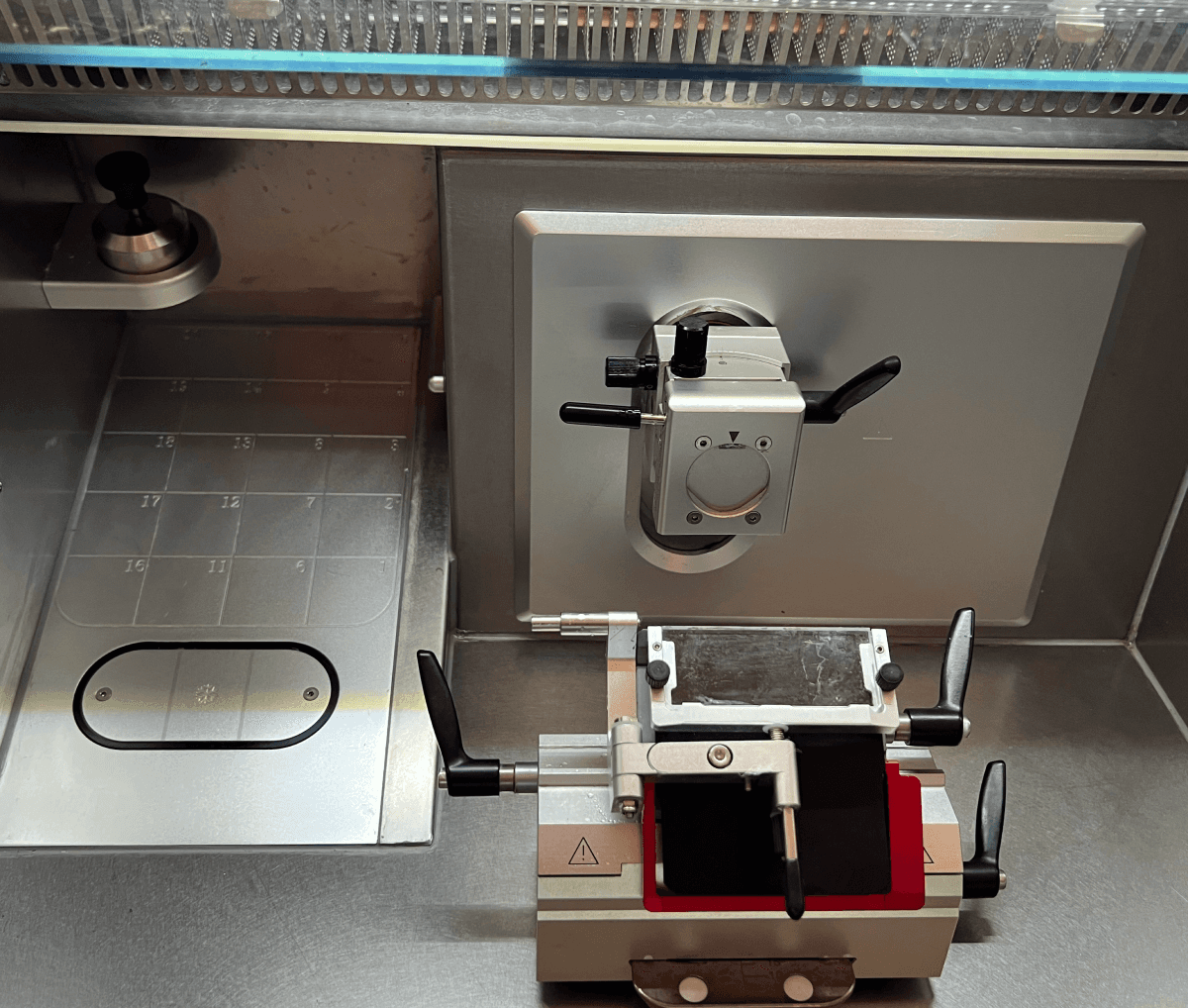

Reproducible Sections: Motorized microtome ensures consistent, high-quality frozen sections.
Adaptive Illumination: Adjustable chamber lighting reduces eye fatigue while ensuring visibility.

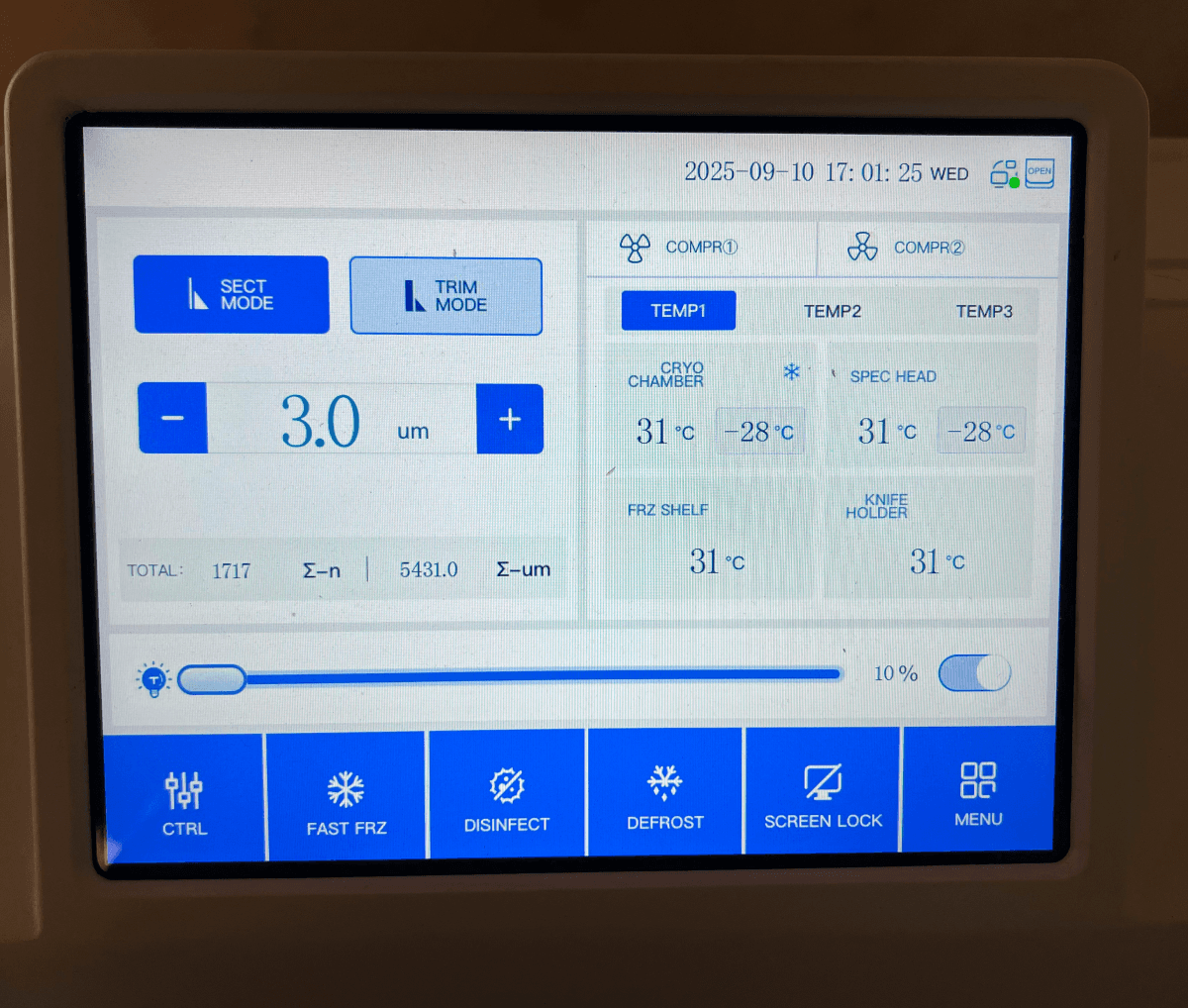

Intuitive Interface: 12-inch touchscreen displays all parameters clearly, with easy switching between trimming and sectioning.
UVC Safety & Scheduling: Automated disinfection, defrosting, and timed wake-up improve lab uptime and safety.
Low-Fatigue Operation: Smooth, lightweight hand wheel minimizes operator strain.
Engineered Stability: Dedicated storage shelves for samples and tools enable multi-sample testing.
Technical Specifications
Specification | Details |
|---|---|
Temperature Range (Chamber) | 0 °C to –35 °C ±5 K (adjustable in 1 K steps) |
Temperature (Specimen Head) | Down to –50 °C |
Temperature (Peltier Station) | Down to –60 °C |
Display | 12-inch color touchscreen |
Defrosting | Automatic & manual; programmable up to 24 hr cycle |
Freezing Stations | 20 stations + 3 Peltier elements (–60 °C ±3 °C at –42 °C shelf) |
Maximum Specimen Size | 50 × 80 mm |
Specimen Orientation | 8° (orientation section) |
Course Feed | 300 µm/s (slow), 900 µm/s (fast) |
Section Thickness | 1 – 100 µm (fine increments) |
Trimming Thickness | 5 – 600 µm (fine increments) |
Horizontal Feed | 28 ± 1 mm |
Vertical Stroke | 59 ± 1 mm |
Operation Modes | Trim/Section switch, dormancy, appointment wake-up |
Safety | UVC disinfection (30 or 180 min), status lamp, hand wheel lock, blade finger protection |
Dimensions (approx.) | 830 × 820 × 1225 mm (with hand wheel) |
Power Supply | 220 V / 50 Hz |
