Tissue Embedding

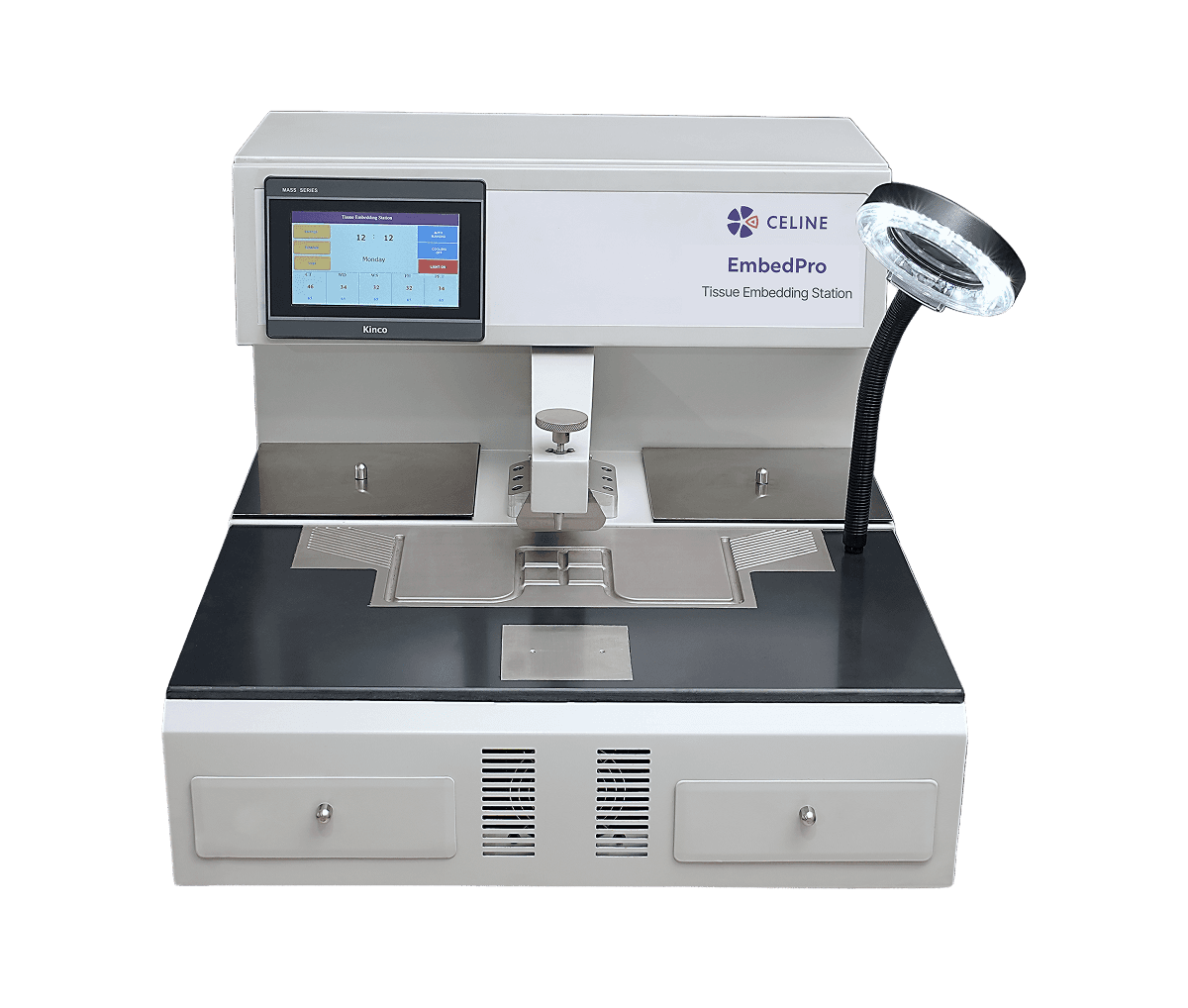

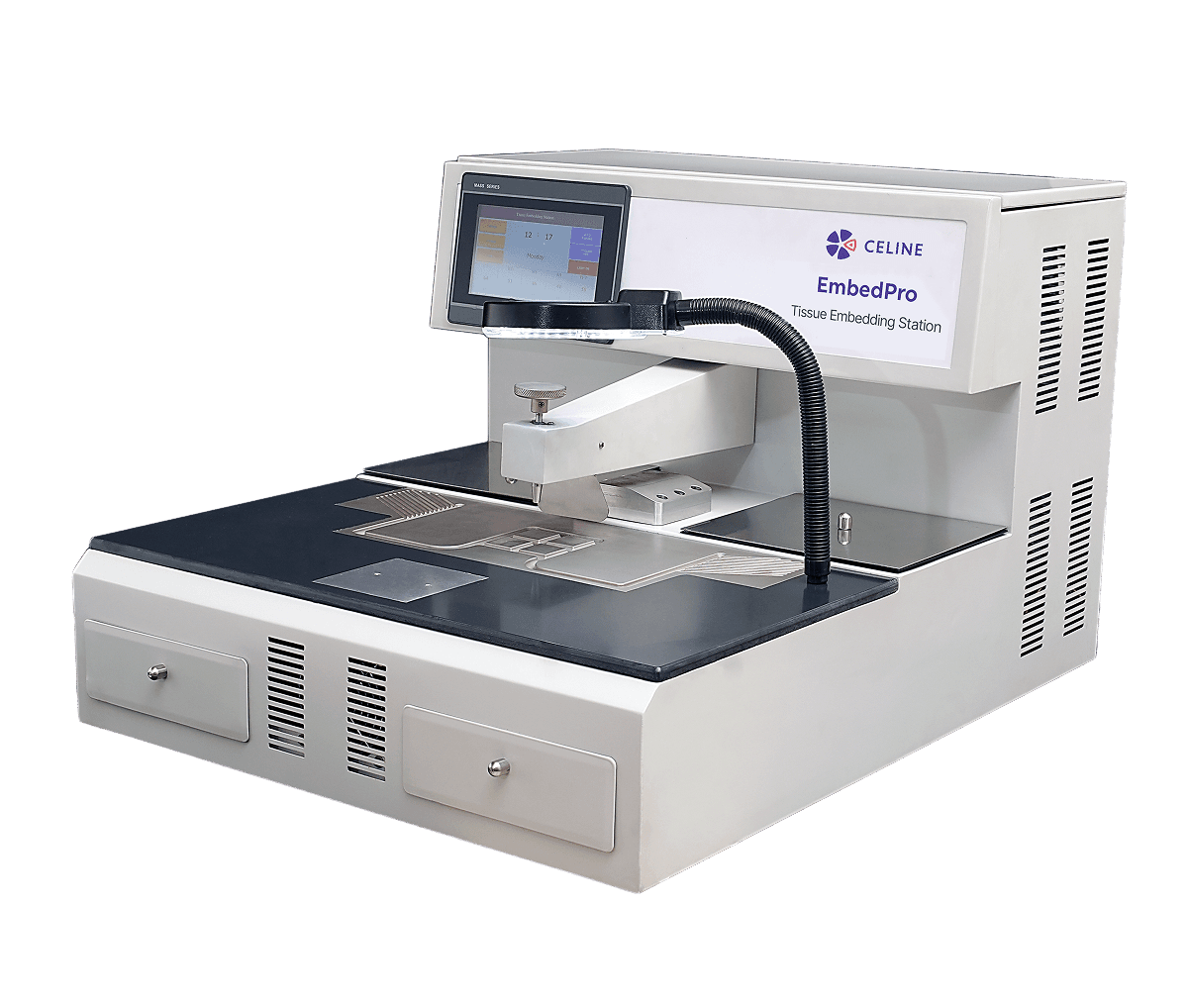

EmbedPro
Features
Cold Spot Efficiency: Maintains –5 °C (optional –10 °C) for rapid block solidification.
Independent Temperature Control: Separate regulation for paraffin, hot plate, cold spot, and tissue storage.
Sealed Surfaces: Multi-surface aluminum plate for trimming, drainage, tissue reorganization, and cassette setting.
Forceps Heater: Heated stand for up to 6 forceps with provision for electrically heated forceps.
Wax Flow System: Controlled paraffin dispensing for reliable embedding.
Ergonomic Workspace: Integrated lens and light with flexible arm for strain-free use.
5.2 L Paraffin Tank: Large capacity for high-throughput laboratories.
Touchscreen Control: 7” reagent-resistant touchscreen with intuitive UI.
Graphite Surface: Rounded edges for user safety and comfort during long use.
Waste Trays: Convenient trays for unused or discarded paraffin.
Technical Specifications
Specification | Details |
|---|---|
Paraffin Tank Capacity | 5.2 L with integrated 4-position block warmer |
Paraffin Tank Temperature | 55–70 °C (±1 °C) |
Hot Plate Temperature | 55–70 °C |
Hot Plate Dimensions (approx.) | 18” × 7” |
Tissue Storage Temperature | 55–70 °C |
Cold Spot Temperature | –5 °C (optional –10 °C) |
Module Dimensions (approx.) | 24” × 29” × 19” (WDH) |
Power Supply | 220 V / 50 Hz |
