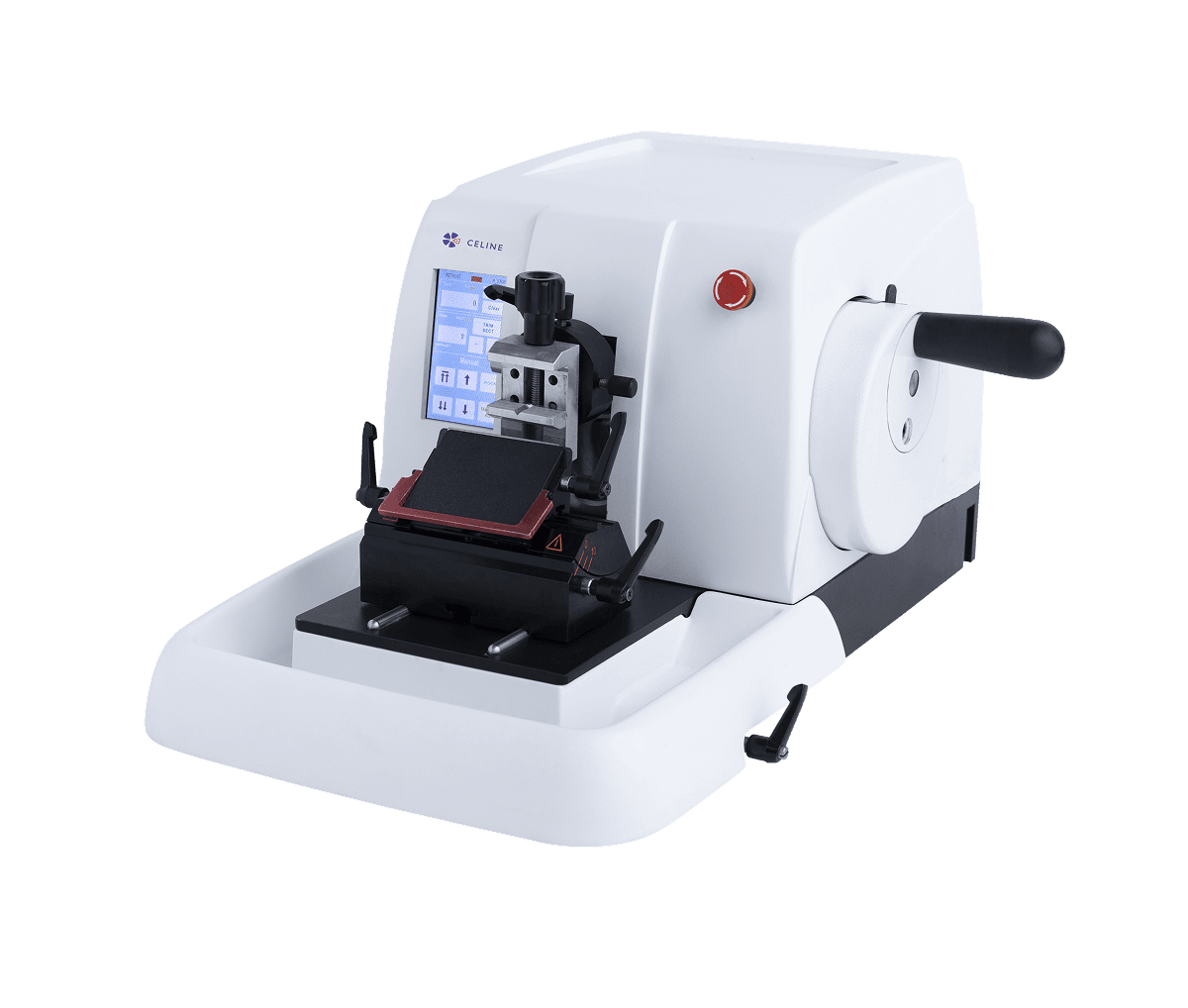

Microtomy
AutoPut
Features
Antistatic Waste Tray: Keeps the work area clean and free from paraffin build-up.
Multiple Sectioning Modes: Programmed, continuous, step, or manual operation.

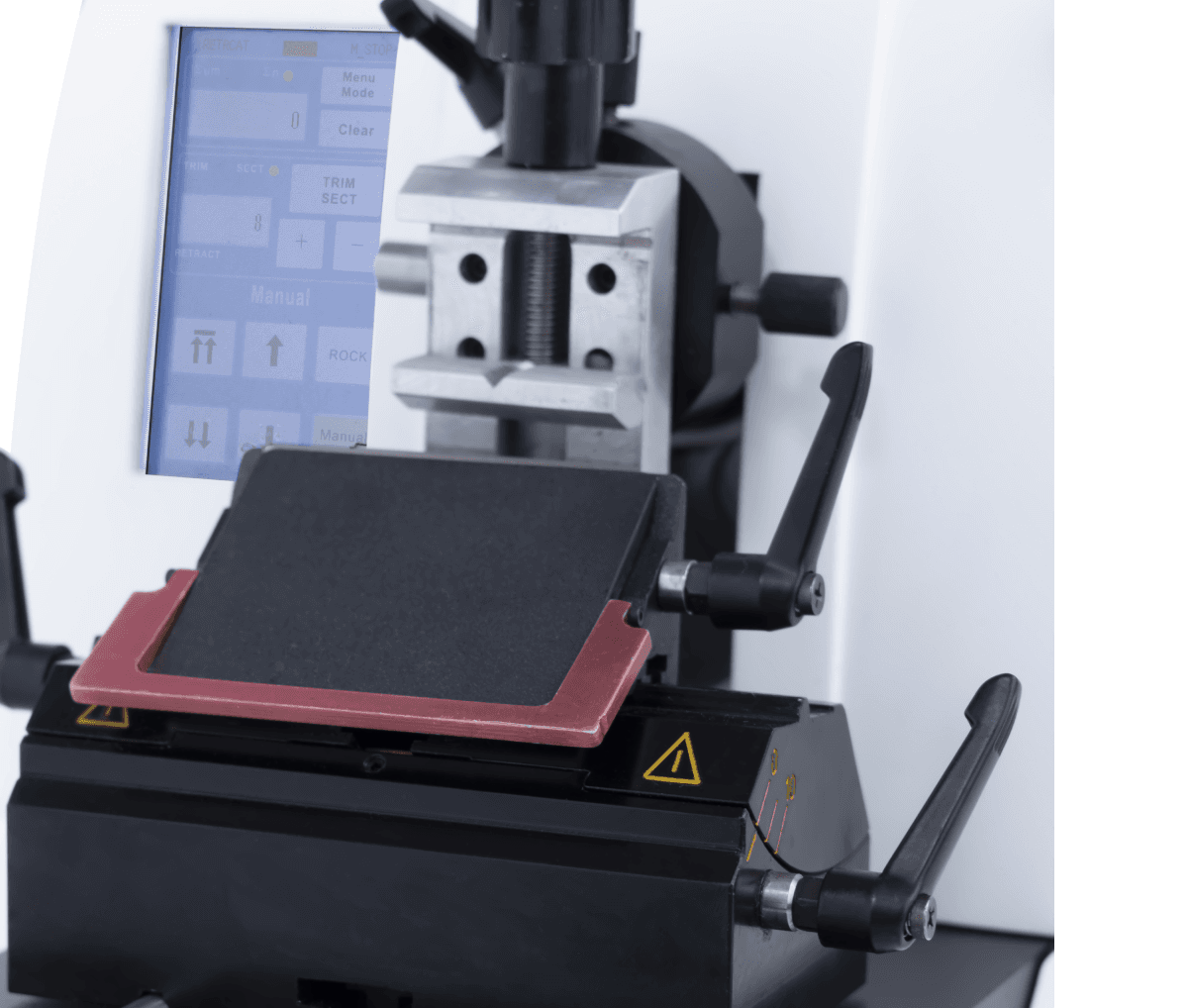

Touchscreen Display: Digital interface for thickness, trimming, modes, and section count.
Universal Blade Holder: Triple adjustment design for precision and flexibility.
Vibration-Free Base: Heavy, rigid design for stable and shake-free sectioning.
Adjustable Section Holder: Holds specimens up to 55 × 55 mm with ±8° fine adjustments.
Dual Sectioning Control: Switch easily between motorized and manual operation.
Emergency Stop: One-touch button halts motorized operation instantly.
Technical Specifications
Specification | Details |
|---|---|
Section Thickness Indication | Touchscreen display |
Section Thickness Range | 0.25 – 100 µm |
Section Thickness Setting Values | 0.25–4 µm (0.25 µm steps); 4–10 µm (1 µm steps); 10–20 µm (2 µm steps); 20–100 µm (5 µm steps) |
Trimming Thickness Range | 1 – 600 µm |
Trimming Thickness Settings | 1–10 µm (1 µm steps); 10–20 µm (2 µm steps); 20–100 µm (5 µm steps); 100–200 µm (10 µm steps); 200–600 µm (25 µm steps) |
Coarse Specimen Advance | Adjustable 1 – 99 µm |
Horizontal Specimen Feed | 28 mm ± 2 mm |
Vertical Specimen Feed | 72 mm ± 2 mm |
Specimen Orientation (XY Axis) | ±8° |
Specimen Orientation (Z Axis) | 360° rotation |
Specimen Holder Size | Standard 55 × 55 mm |
Knife Holder Base | Supports knives 100–300 mm |
Power Supply | 220 V / 50 Hz |
